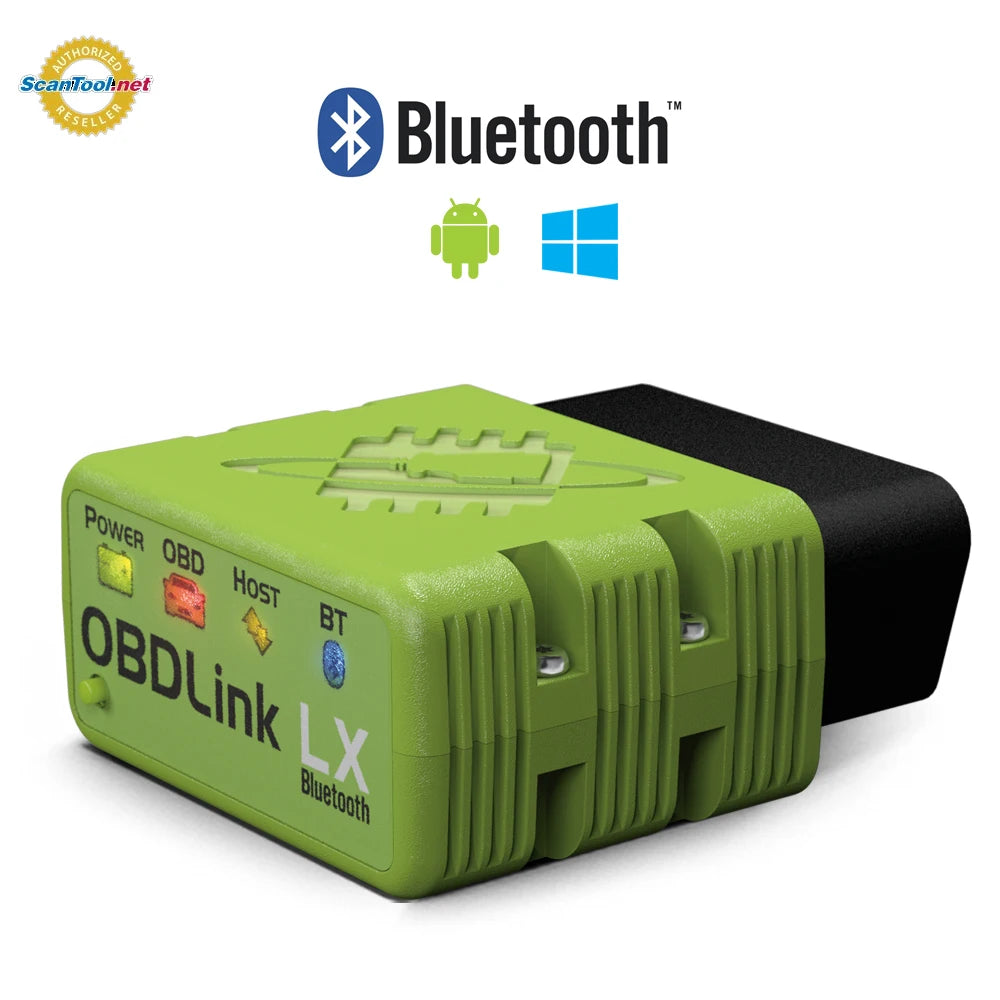

OBDLink LX MX+ OBD2 Scanner ELM327 Diagnostic Scan Tool for iPhone, iPad, Android, Kindle Fire or Windows Device
OBDLink LX MX+ OBD2 Scanner ELM327 Diagnostic Scan Tool for iPhone, iPad, Android, Kindle Fire or Windows Device
SPECIFICATIONS
Automotive fit type: Universal fit
Battery Included: no
Brand Name: OBDLink
Certification: CE,FCC,RoHS
Certifications: RoHS,CE,FCC,REACH,AS/NZS
Connection: Connect button requires physical access
Connection 1: Secure 128-bit data encryption
Connection 2: Class 2 Bluetooth v3.0 transmission
Hardware Version: Newest
High-concerned chemical: None
Item Type: Code Readers & Scan Tools
Language: English
Operating Voltage: 8-18V DC
Origin: MX(Origin)
Software Update: Yes
Software Version: OBDLINK and Third Parrties
Special Features: Bluetooth
Wireless Support: Bluetooth
OBDLink Official Store___Genuine products ___3 years Warranty
All OBDLink products are designed in the U.S.A by OBDLink
Feature Highlights
• Fully compatible with the ELM327 AT command set
• Feature-rich parallel extended ST command set
• UART baud rates from 38 bps to 10 Mbps(1)
• Large (up to 4KB) data transfers(2)
• Safe, secure bootloader for easy firmware updates
• Support for all legislated OBD-II protocols:
o ISO 15765 (CAN)
o ISO 14230 (Keyword Protocol 2000, KWP2K)
o ISO 9141 (Asian, European, Chrysler vehicles)
o SAE J1850 VPW (GM vehicles)
o SAE J1850 PWM (Ford vehicles)
o SAE J1939 (Heavy Duty vehicles)
• Support for non-legislated protocols (not available in OBDLink LX):
o ISO 11898 (raw CAN)
o SAE J2818
o SAE J2411 (GMW3089, Single Wire CAN, GMLAN)
o Ford MS-CAN (Medium Speed CAN)
• Superior automatic protocol detection algorithm
• Large memory buffer
• Voltage input for battery monitoring
• PowerSave mode with multiple sleep and wakeup triggers
Note 1: Maximum theoretical baud rate. Actual maximum baud rate is application dependent and may be limited by driver
hardware.
Note 2: Only available on specific OBDLink devices. See STPX for details.
ABOUT OBDLINK

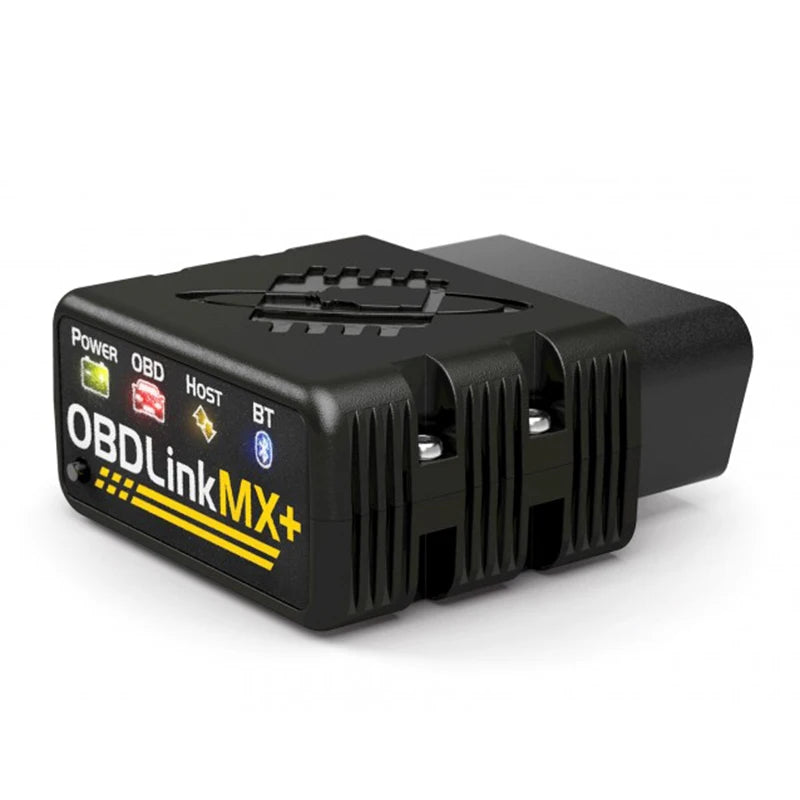

OBDLink is an easy-to-use, inexpensive, hacker-proof, lightning-fast Bluetooth OBD adapter that can turn your smart phone, tablet, laptop, or netbook into a sophisticated diagnostic scan tool, trip computer, and real-time performance monitor.
The ergonomically designed, small form factor device comes in frustration-free packaging, and takes an average of 3 minutes to install.
The button on the back of the unit makes the connection process both easy and secure: unlike most other adapters on the market,OBDLink neither broadcasts its presence, nor uses an easy-to-guess PIN to protect the communication link. A potential hacker would require physical access to the device, in order to connect to it.

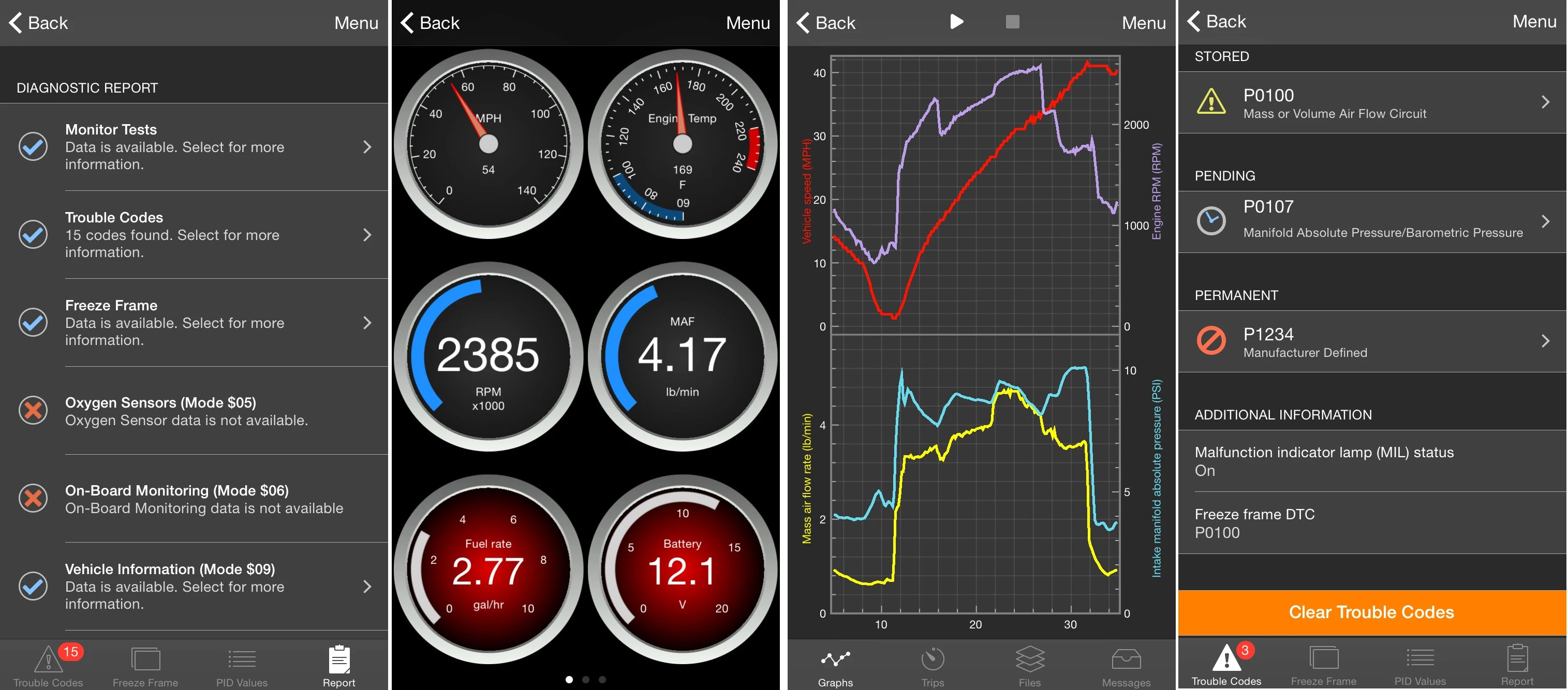

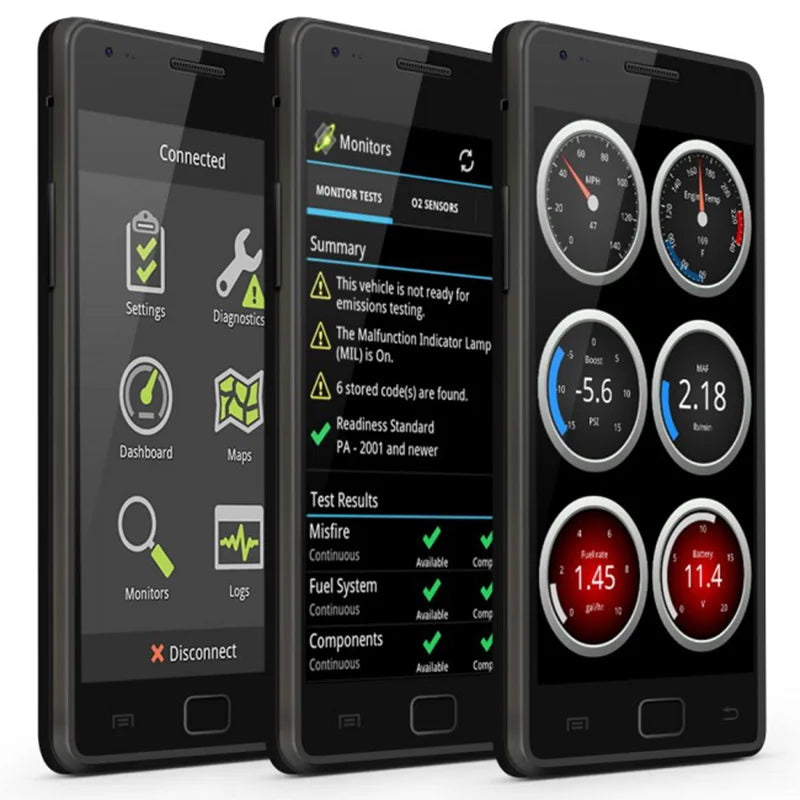

Free Exclusive OBDWiz and OBDLink App, included ,allows you to:
Turn off the check engine light, and erase stored diagnostic information
Read and erase stored and pending trouble codes (both generic and manufacturer-specific)
Access freeze frame information
Display, graph, and log 90+ real-time parameters
Create custom digital dashboards
Measure and display fuel economy
And much more!
COMPATIBLE OBD-II APPS
While all OBDLink tools include a capable diagnostic app, many third-party apps are available that can greatly expand the utility of the tool. Each app has its own unique set of features and capabilities.
Note: Not all OBDLink scan tools are compatible with all apps, and only OBDLink MX+ currently supports iOS.

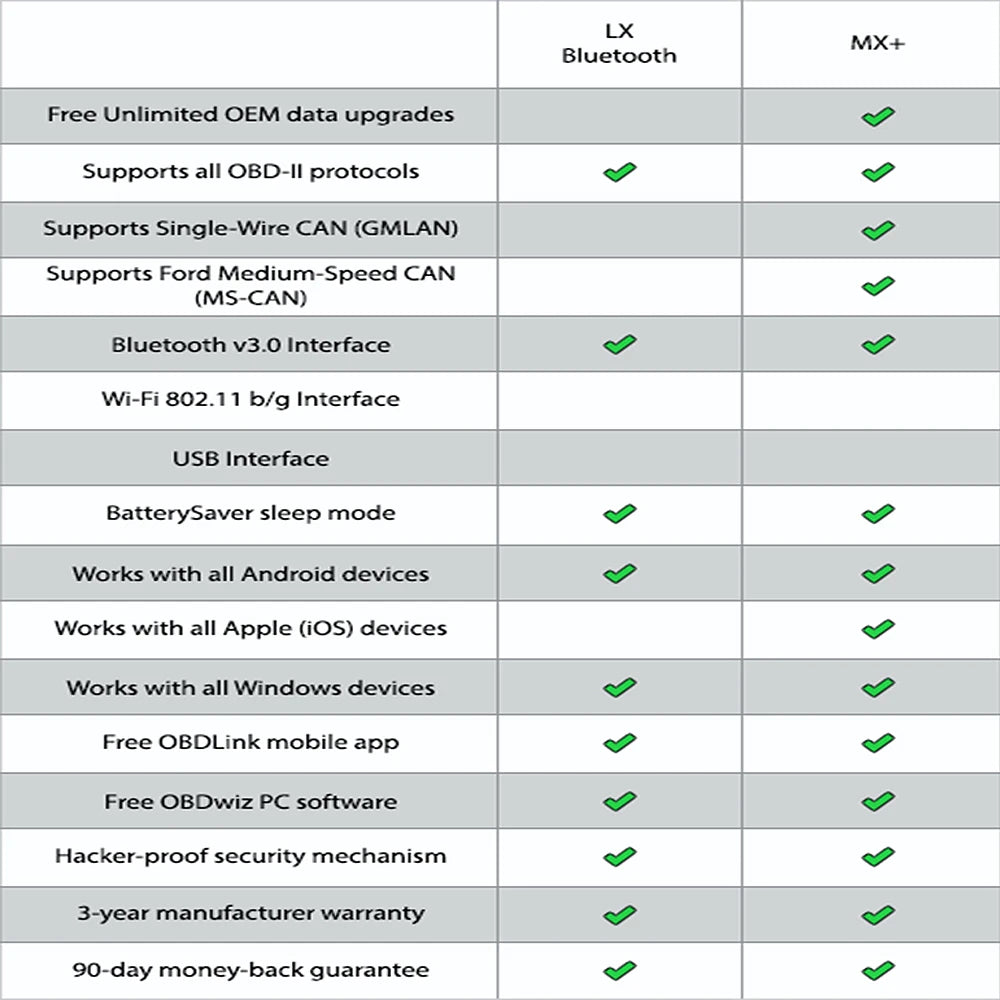

COMPARE BETWEEN LX AND MX+
MX+ Supports:
Free Unlimited OEM date upgrades
GMLAN,MS-CAN
iOS devices

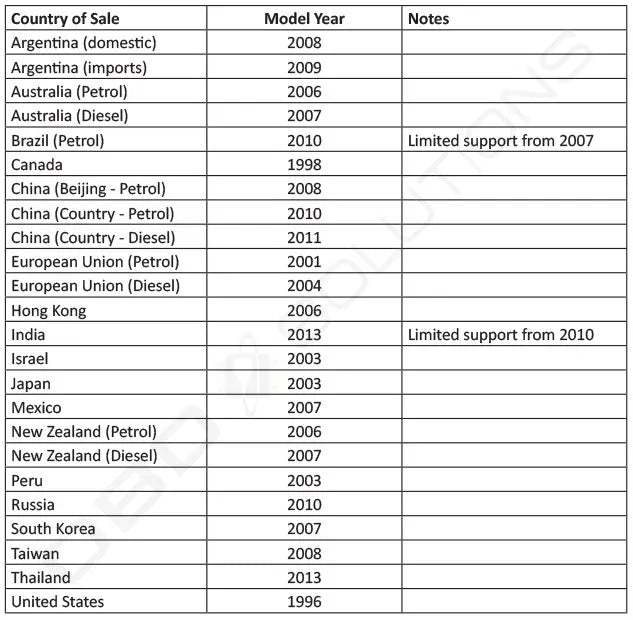

VEHICLE COMPATIBILITY
OBDLink MX+ works with all 1996 & newer model year cars and light trucks sold in the U.S., including all American, European, and Asian vehicles. Live outside the U.S.? Most newer non-U.S. vehicles are compliant with the OBD-II standards.
Check here to verify that MX+ will work with your non-U.S. vehicle.
